XL Specialized Step Deck
Detachable Gooseneck
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 38 ft
- Deck height
- 39 in
Overview

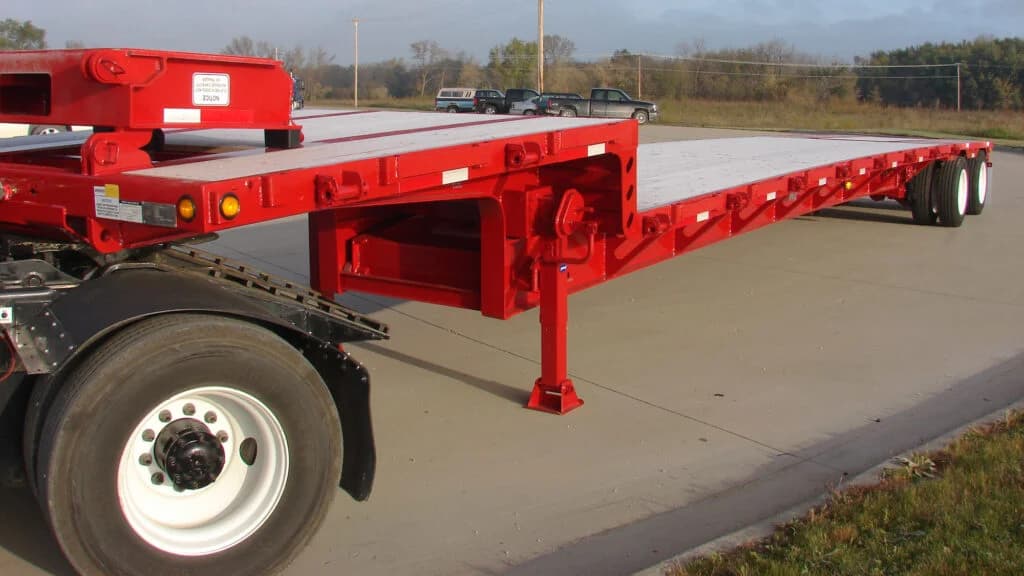

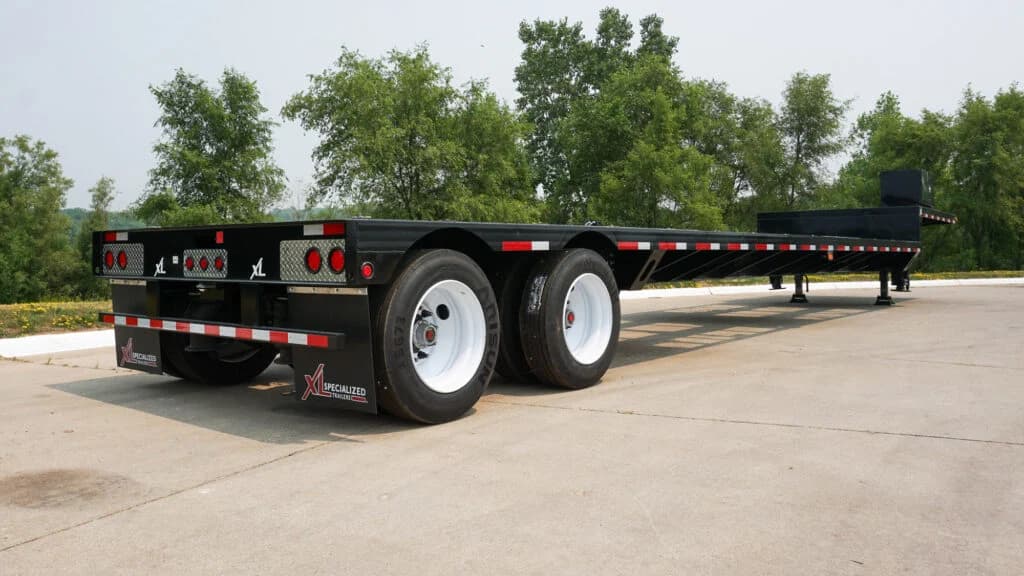

The XL Specialized Step Deck is a 35-ton step deck trailer with 2 axles, a 38-foot deck and a 39-inch loaded deck height. Trailers of this type typically haul freight up to about 10 feet tall, wheeled equipment and machinery.
Specifications
General
- Model
- XL 70 SD
- Standard OAL
- 48'
- ISO 9001
- 2015 Registered
Capacity
- Overall Capacity
- 70,000 lbs
- Concentrated Capacity
- 50,000 lbs in 10' closed
Dimensions
- Gooseneck Length
- 10'
- Standard Main Deck Length
- 38'
- Loaded Deck Heightof Main Deck
- 39 1/2"
Running Gear
- Standard Axles
- 2
About step deck trailers
A step deck (or drop deck) has a short upper deck over the fifth wheel and a longer lower deck stepped down behind it. The lower deck sits around 36 to 40 inches high — roughly two feet lower than a flatbed — so it carries freight up to about 10 feet tall without an over-height permit. Common lengths are 48 and 53 feet, with ramps optional for wheeled equipment.
