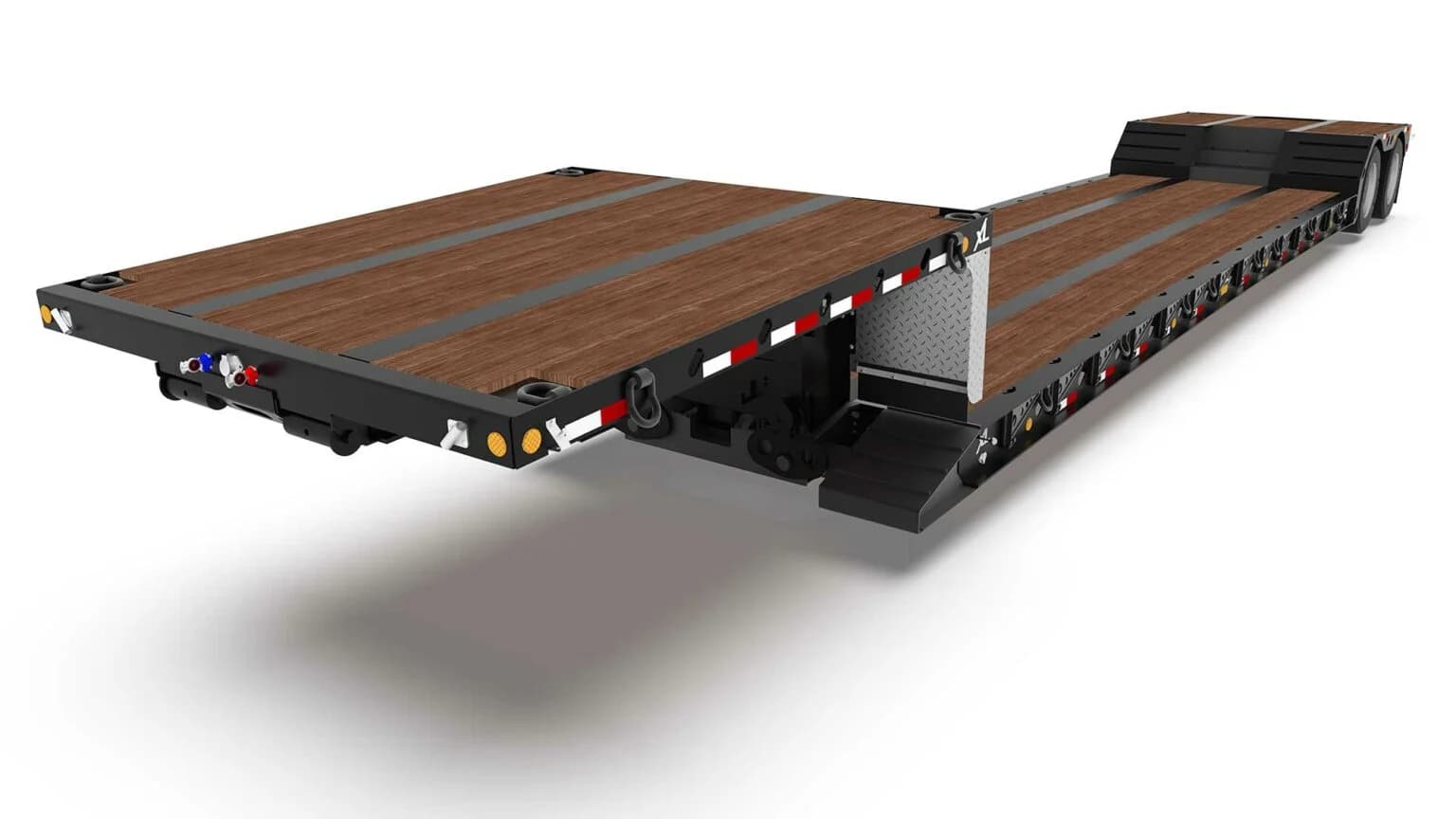

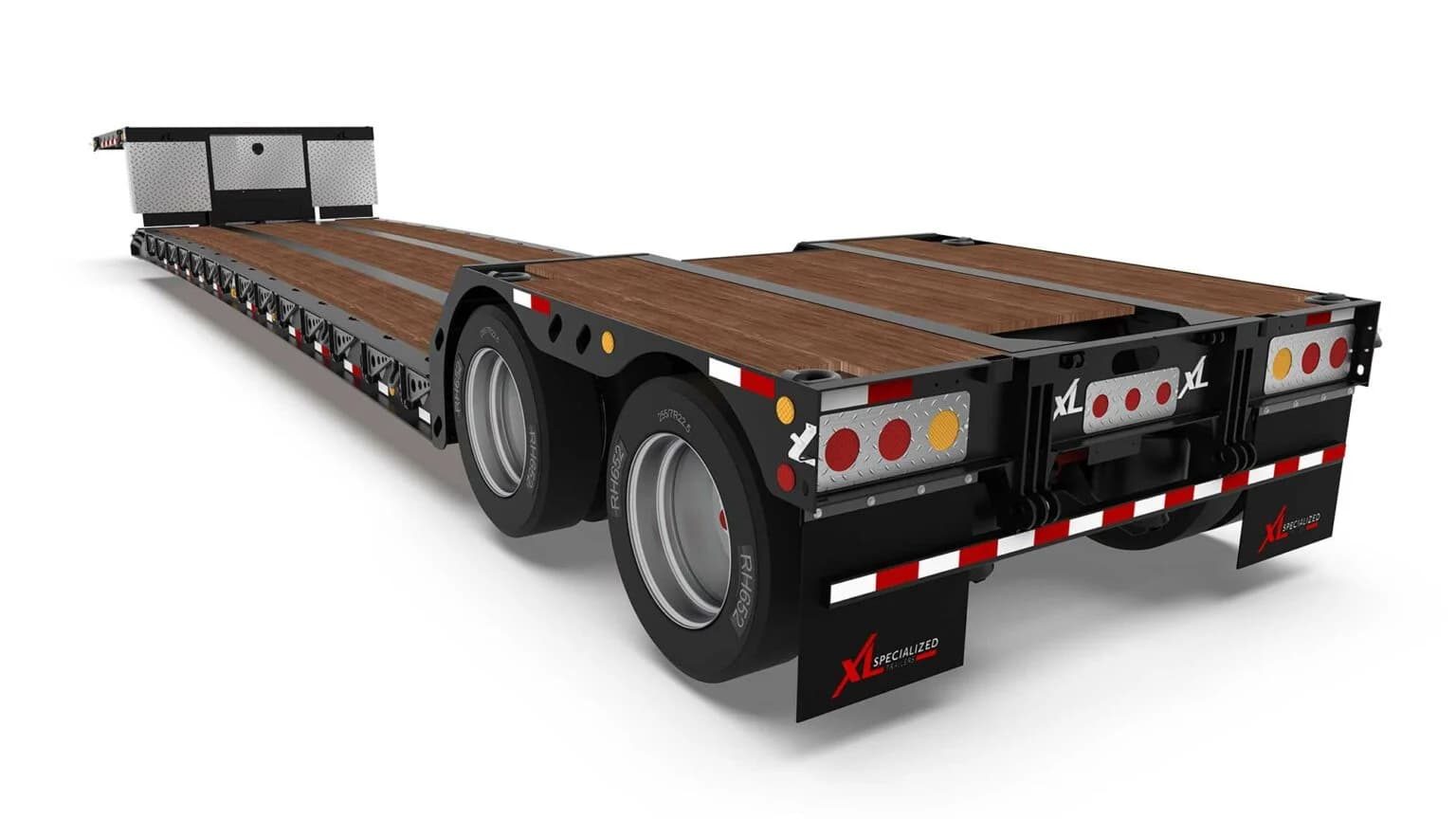

XL Mechanical Full-width Gooseneck
Detachable Gooseneck
- Capacity
- 30 ton
- Axles
- 2
- Deck length
- 29 ft
- Deck height
- 18 in
Overview
The XL Mechanical Full-width Gooseneck is a 30-ton lowboy trailer with 2 axles, a 29-foot deck and a 18-inch loaded deck height. Trailers of this type typically haul excavators, dozers, cranes and drill rigs.
Specifications
Capacity
- Overall Capacity
- 60,000 lbs
- Concentrated Capacity
- 50,000 lbs in 16'
Dimensions
- Gooseneck Length
- 10'
- Standard Main Deck Length
- 29'
- Deck Height
- 18"
- Ground Clearance
- 6"
Running Gear
- Standard Axles
- 2
- Wheel Area
- Wood-covered
General
- Standard OAL
- 48'
- Outrigger Style
- Swingouts
- ISO 9001
- 2015 Registered
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
